I. Internet access
1.Campus network fees
2.How to connect to a Wi-Fi network:
(1). Turn on the mobile phone, enter the wireless settings interface, find the wireless network entitled bwu-wifi, and connect.

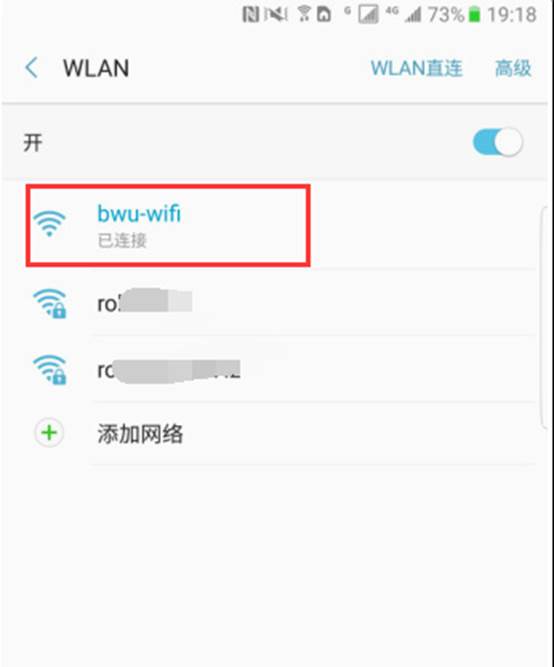

(2). After connecting to bwu-wifi, a login box will pop up. (If it doesn't pop up, you can open a browser and open a URL, which will also jump to this login page.) ）
(3) After entering the password, the login is successful.
(4) If you need to log off the wireless network later, you can open the URL bwu.re/wxzx to log off. The same procedure also applies to laptops.
3. Wired Internet in the dormitories
There are 2 Internet ports in each dormitory, and the appearance of the network port is roughly as shown in the following figure.
(2) Prepare a good quality network cable (a bad quality network cable will cause the Internet inaccessible or the network unstable).
（3）Find the network port on your computer.

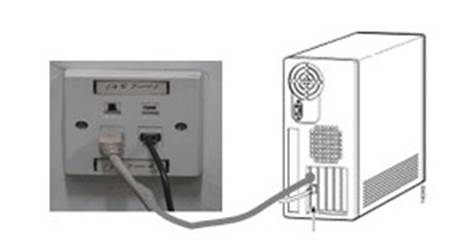

（4）Plug both ends of the network cable into the Internet port on the wall and the computer network port.
So far, the hardware connection is completed, and the APP installation and login procedure are as follows.
Open the bwu.re/khd and download the APP.
（2）Double-click the downloaded installation file.
(3) Follow the default options and click “OK”, “Next”, “Agree” to finish the installation, and generate a shortcut on the desktop.
(4) After clicking the shortcut, select “Authentication” - “Login” in the client software interface.
(5) If the interface for selecting a network card appears, the correct name of the wired network card should be selected.
(In general, you should choose one that contains gigabit or Ethernet, and if there is Microsoft, you should definitely choose another one. If there is Wi-Fi or WLAN, you should also choose another one. If this step is wrong, it doesn't matter because you can re-select it in the settings later.)
(6) After selecting the correct URL, a login box will appear. Enter your Internet account and your password to log in.
4. Description of common errors on the billing system.
5. Instruction of Digital Campus Account
The digital campus account is also a webvpn account.
Digital campus login address: my.bwu.edu.cn, you can enter the educational administration system and the platform of the authorized edition of client software after logging in.
Webvpn login address: webvpn.bwu.edu.cn, you can access the digital campus platform and various campus systems after logging in.
6. Instruction of Internet account
The Internet account, also known as the billing system account, is used for the wired and wireless network login on campus, or for the VPN login outside of the campus.
When it is used for wired and wireless network login on campus, the network card address (MAC address) of the device must be bound first.
Login to VPN online: open vpn.bwu.edu.cn in the computer browser to log in. If you are using a mobile phone, please download the corresponding APP first.
How to use campus VPN - Information Center http://nic.bwu.edu.cn/info/9396/58508.htm
How to use campus VPN for Android mobile phone - Information Center http://nic.bwu.edu.cn/info/9396/58512.htm
How to use campus VPN for Apple mobile phone - Information Center http://nic.bwu.edu.cn/info/9396/58513.htm
7. Easy-to-use instructions of software Zoom
(1) APP download
Log in to the official website www.zoom.com.cn/download to download the latest version of Zoom for Windows system. After downloading, double-click the zoominstaller.exe file to install, and the Zoom software icon will appear on the desktop.
Registration
Log in to the official website https://zoom.com.cn/signup to register a Zoom account, and it is strongly recommended to use the school mailbox for registration.
(3) Schedule a meeting (meeting reservation)
Open Zoom and log in, click the [schedule] meeting button to enter the schedule meeting page. Fill in your meeting information on the [meeting arrangement] page.
(4) Invite others to the meeting
After the meeting begins, click [invite] and click [copy link] or [copy invitation information] in the pop-up window. Send the copied meeting invitation information through WeChat, QQ, SMS, etc.
(5) Join the meeting
When participants click the conference link, the system will automatically detect whether the Zoom video conference software has been installed. If it is already installed, click to join the conference. You can also open software Zoom and enter the conference ID to join the conference.
If the software Zoom has not been installed, after clicking the conference link, the system will automatically jump to the download page, click “run”, and the computer will automatically download and install Zoom video conference software. After the installation, you can join the conference.
8. Internet fee recharge
(1) Recharge by using WeChat enterprise number

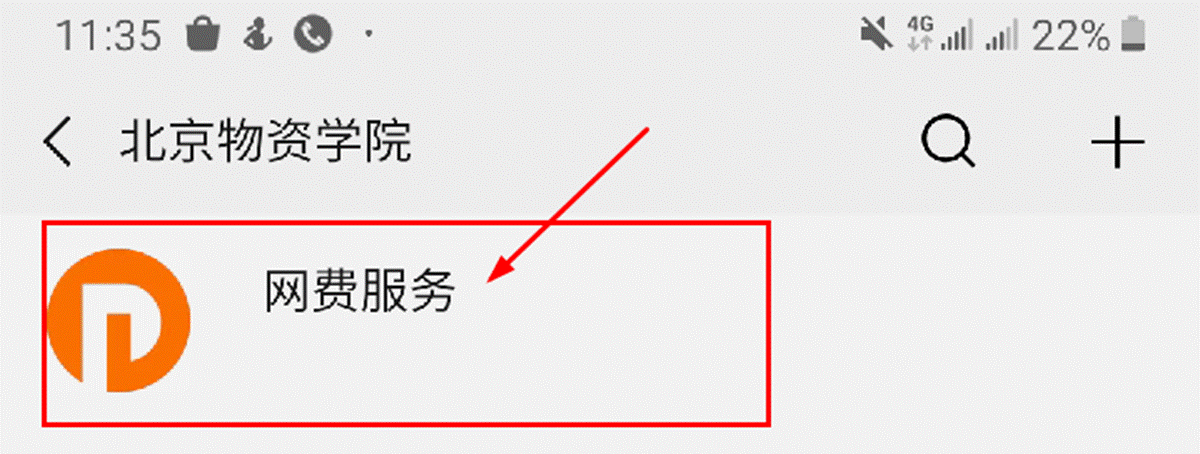

A. Find the Internet fee service in the enterprise number.
B. Enter the recharge amount and click OK.
C. Use WeChat payment to recharge
NOTE: Instructions of transfer machine recharge: http://nic.bwu.edu.cn/info/9351/58376.htm
(2) Recharge by using transfer machine
A. Find a transfer machine on the campus and put the campus card in the designated location. (Transfer machine can be found near the gates of cafeteria, library, teaching building, card service center and Information Center).
B. Select Internet fee service on the screen.
C. Enter the Internet fee account number (Internet account number is student number), enter recharge amount and campus card password in the new window, and click OK.
(If you are a residential quarter user, you need to input letters or symbols, you can press the dot (.) on the keypad to open the soft keyboard.)
D. Recharge succeeded.
9. (1) Solution of Internet disconnection 1 (restart network service)
Many students experience Internet disconnection mainly because the network service needs to be restarted and Netsh Winsock needs to be restarted.
A. First, we need to restart the network service. See the following figure for specific operations. The shortcut is: Windows key + r,
Type in services.msc and press Enter button to open the service window.
B．Find DHCP Client and DNS Client, then restart both.
C. Restart netsh winsock. First, we need to enter administrator permission operation on CMD: enter CMD interface
D. Type in netsh winsock reset and then press Enter button. Then restart your computer.
。
PS: Software 360 and QQ Steward may affect NETSH.EXE running, so it is strongly recommended to delete both softwares! If you get disconnected with Internet again after restart, please repeat the procedures above.
(2) Solution for Internet disconnection 2 (turn off sharing)
To solve the problem of online disconnection in the dormitory, the solutions are as follows:
Uncheck “allow other network users to connect through the Internet connection of this computer” on the Internet connection interface.
B. Turn off ICS shared service.
ICs sharing is a shared service provided by windows. After it is started, the threshold value of the number of packets will be checked. If it exceeds a certain number or time, it will be prompted. This server can be set as a service that will not be automatically executed after startup. In addition, WiFi sharing of 360 uses ICS shared service by default. Therefore, if we want to reduce the agent offline caused by ICS, it is generally recommended that users change this service to manual status and stop it by default. The specific operation is as follows:
Run services.msc, open the service interface and select “Internet connection sharing” (ICS), as shown in the following figure:
Double click the service and select disable for startup type, as shown in the following figure:
C. Please uninstall all softwares related to WiFi software. (For example, WiFi sharing of 360)
10. Check MAC address on iPhone
Click Settings - General - About this phone. The “wireless LAN address” is the MAC address. (Some versions are also called “Wi-Fi address”)
The method applies to both iPhone and iPad.
11. Check MAC address on Android phone
Click Settings - About mobile phone - Status, and the “Wi-Fi MAC address” is the MAC address. (Some versions are also called “WLAN MAC address”)
The method applies to both Android phones or Android tablets. There are many manufacturers of Android phones, the names displayed might be slightly different, but they are basically in this position. You can find them eventually.
12. Check MAC address on Windows system
A. Press Win + R simultaneously to open the operation window, type in “cmd”, and then press Enter button to confirm.
Enter the command “ipconfig / all” in the command prompt window to find all the network card addresses of the computer, including wired and wireless access (if there is a wireless network card).
Note: 1. Network card address, also known as MAC address, is a physical address. There are 6 groups of 12 characters, separated by colons (:) or minus signs (-).
C. The address of the network card is fixed on the hardware, even if the network cable is not plugged in, it can be found out through the above steps.
D. Run the command ipconfig /all, there may be many characters such as “Tunnel Adapter Local Area Connection 2:” and “Tunnel Adapter Local Area Connection 6:”, which also contain physical addresses. Leave them alone, these are not the real physical addresses we need.
E. Run the command ipconfig /all, characters like “Bluetooth Adapter Local Area Connection” may also appear, which also has a physical address. Ignore them as well.
F. Generally, the addresses of the wired network card and wireless network card we need are at the top of the returned result of the “ipconfig /all” command. The wired NIC name will appear as “Ethernet Card Adapter”.
G. The wireless network card will be displayed as “Wireless LAN Adapter WLAN” or “Wireless LAN Adapter WIFI”. If there are more than one, you can observe the description. If Virtual or Bluetooth is included, it is not the correct wireless network card.
The second approach
A. Right-click the network icon in the system tray, then left-click “Open Network and Sharing Center”.
B. Click “Change Adapter Settings” in the new window.
C. Right-click on the wireless card's icon, then left-click on “Properties”.
D. Move the mouse to the position on the picture, you can see the corresponding wireless network
card MAC address.
E. In the same way, you can right-click on the icon of the wired network card in step 3, check the properties, and get the MAC address of the wired network card.
13. FAQ about client software
(1) If there is the following prompt when installing the client software, you can install the new version of Winpcap after the installation is completed. Winpcap download address: bwu.re/khdcjwinpcap. After installation, the client software can be used without reinstallation.
(2) When logging in, it prompts “timeout failed network error, please check network connectivity”, as shown in the following figure. In this case, it can be determined that there is no physical connection between the computer and the campus network. You can try changing the network cable, changing the information port, and changing the port that can access the Internet in other dormitories. To determine the problem, if the information port is broken, you can come to the Information Center to report for repair.
(3) If it prompts that this account can only be used on the specified MAC and IP. This kind of prompt is because the MAC address of the current device is not registered under your account. You can bind the MAC address by yourself according to this tutorial: http://bwu.re/bdmac.
14 Campus network ftp resources
The campus network ftp data list, please use ftp client software such as FlashFXP to connect and download.
FlashFXP download address: bwu.re/ftpkhd
ftp地址 |
介绍 |
192.168.0.21 |
常用软件 |
192.168.0.22 |
电视剧 |
192.168.0.23 |
电影 |
192.168.0.57 |
最新影视 |
Downloading on-campus ftp resource is free, but please be careful not to use Thunder to download.
15 Query account balance, recharge records and Internet traffic details
(1) Open the self-service website of the billing system http://192.168.0.8:8080/Self, and enter the Internet account and password to log in.
(2) On the home page of the self-service system, you can see your balance.
(3) Click “Internet Details”.
(4) After entering the “Start Date” and “End Date”, click “Search”, you can check all the Internet traffic, duration and cost of Internet access during this period.
II. Campus VPN

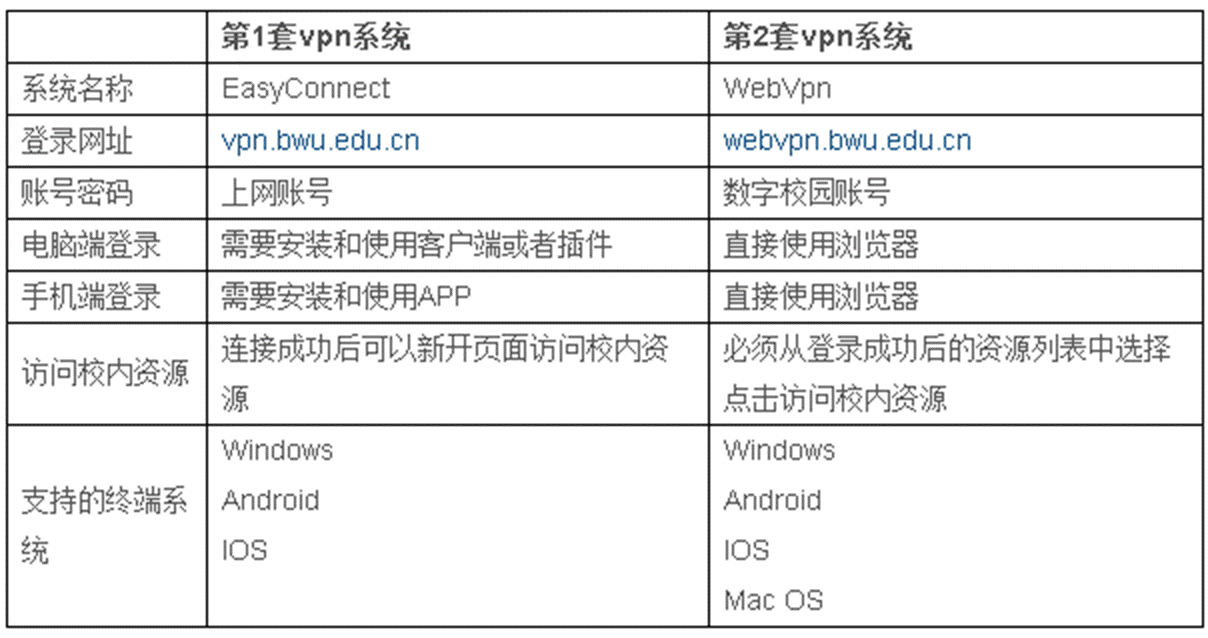

1. Differences in the use of the two VPN systems
2. WebVPN Tutorial
Due to the current epidemic, in order to meet the needs of our teachers and students to work, study and conduct scientific research at home, the school has built a second VPN system, WebVPN, based on the existing VPN system. WebVPN does not need to install a client software or plug-in, just log in through a browser and you can use it. WebVPN has been connected to the digital campus. Users log in with the account and password of our school's identity authentication. After login, they can access campus resources, such as campus portals, campus notifications, and libraries. The use method is described as follows:
(1). Computer login process:
A. Enter the webvpn access address “webvpn.bwu.edu.cn” in the address bar of any browser to open the page.
B. Enter user name of the account and the password of our school’s identity authentication and click “Submit” to enter the webvpn system interface.

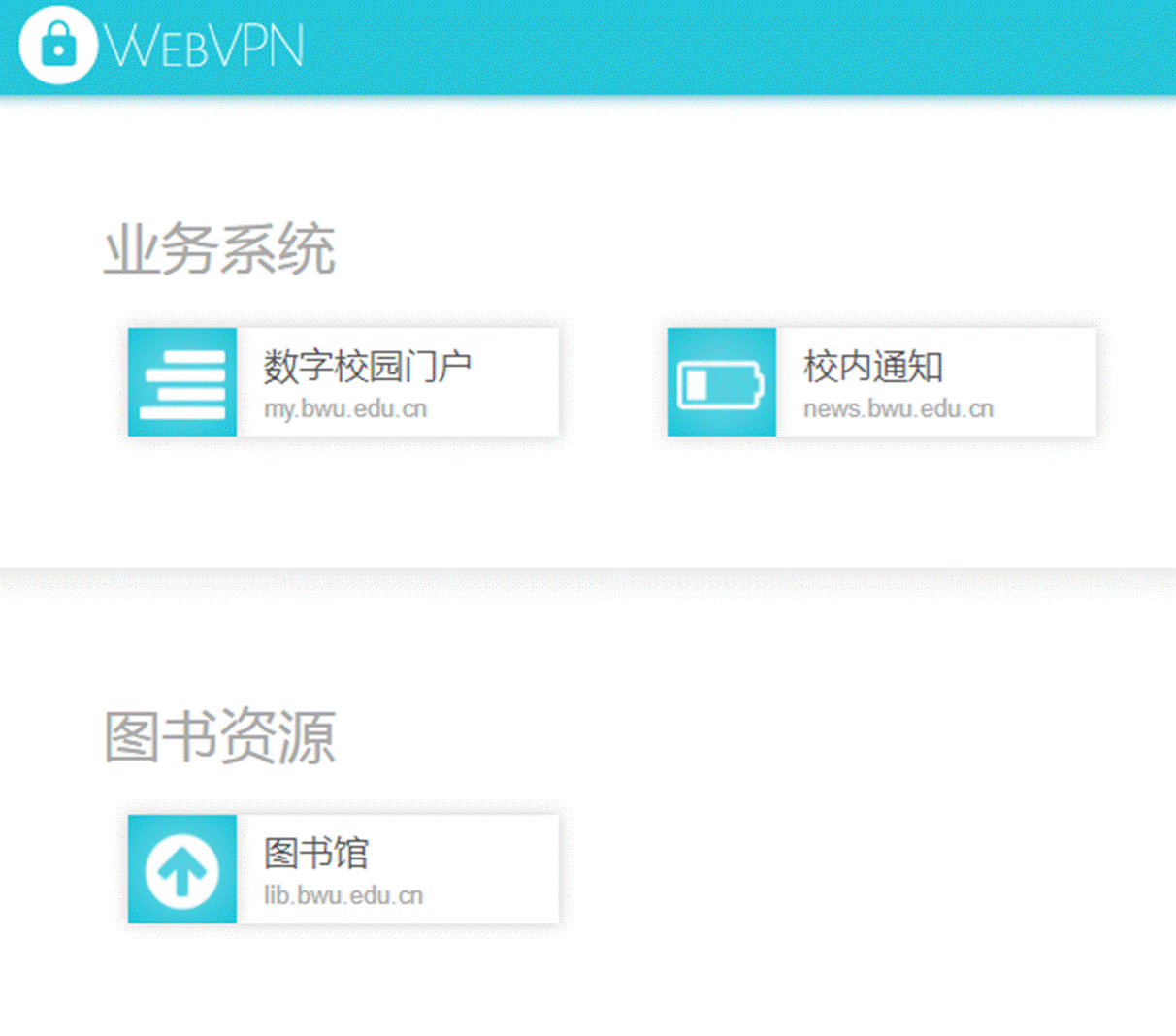

C. Click on the icon you need to access, and you can access resources such as campus portals, libraries, etc. just like on-campus.
(2). Mobile phone or iPad login process:
A. Enter the webvpn access address “webvpn.bwu.edu.cn” in the address bar of any browser to open the page:
B. Enter user name of the account and the password of our school’s identity authentication and click “Submit” to enter the webvpn system interface.
C. Click on the icon you need to access, and you can access resources such as campus portals, libraries, etc. just like on-campus.
(3) Password change tutorial for campus VPN system
Account of the billing system
The user’s name of the billing system account is the work number for faculties (student number for students), and the password can be directly set or modified in the “Network Service” of the WeChat “Beijing Wuzi University” enterprise account.
2. The method of setting (modifying) the account and password of the billing system
A. Enter “Beijing Wuzi University” enterprise account and select “Network Service”.

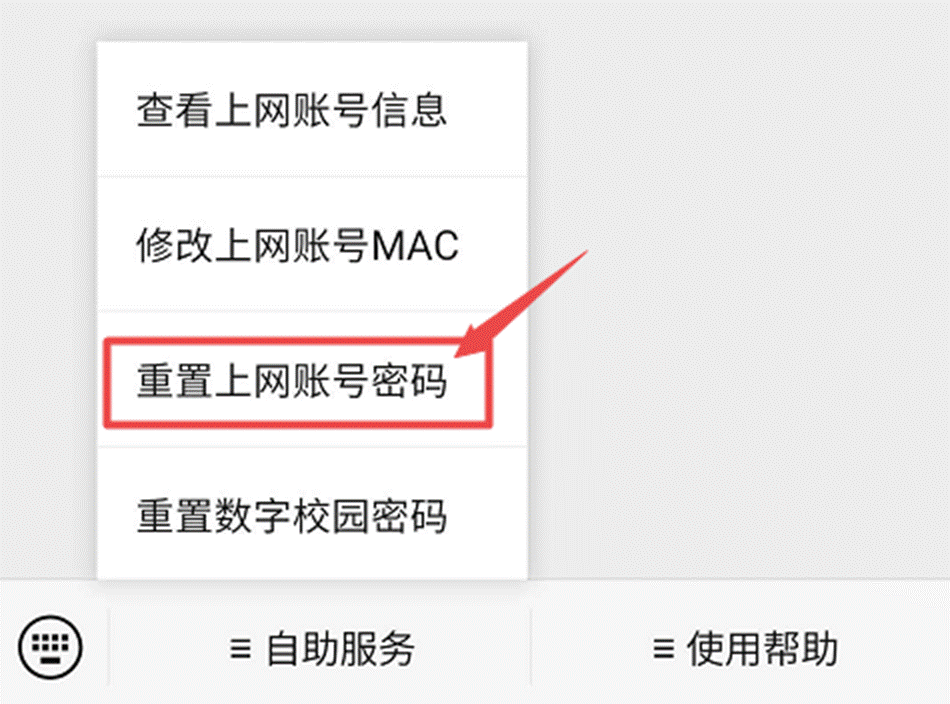

B. In the “Network Services” menu, select “Reset Internet Account Password” in “Self-Service”.

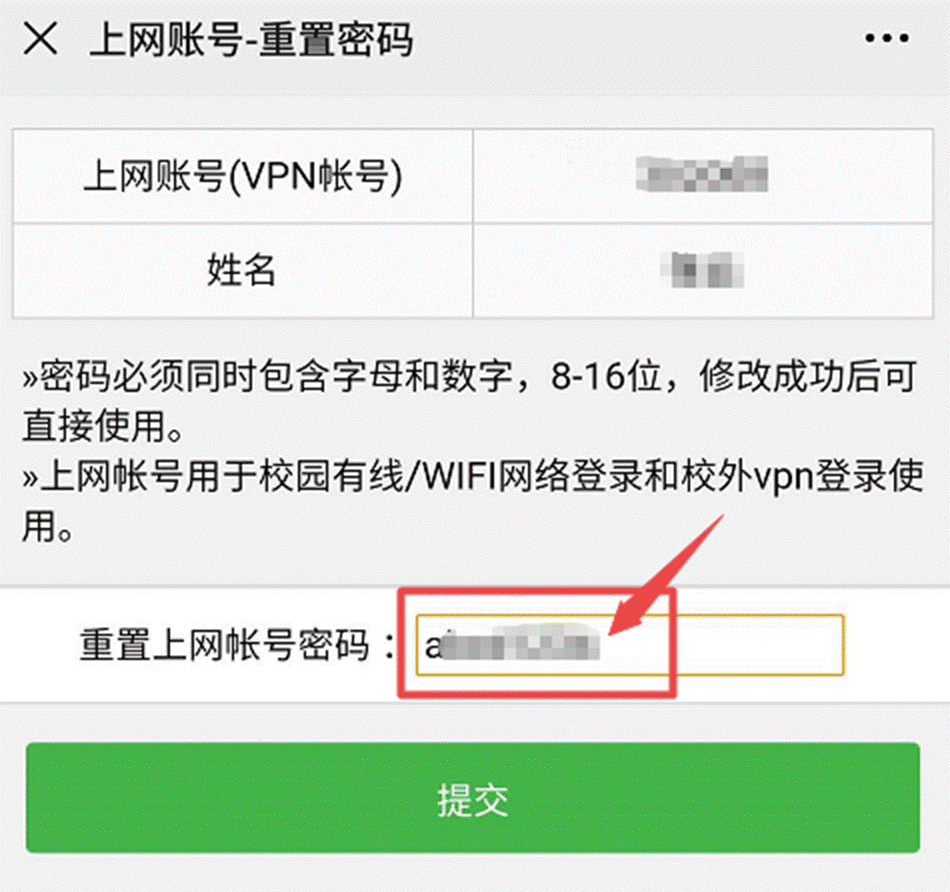

C. Fill in your new VPN password in “Modify password (optional)” and click “Submit”, that is, the password is set (or modified) successfully.
(4) VPN System Tutorial
1. VPN account and password
At present, the account and password of VPN system is the same as the Internet account and password. The account number is the work number (student number). If you forget the password, you can reset it as follows:
Open the school's enterprise account, enter “Network Services”, click “Self-Service” - “Reset Internet Account Password” in the menu below, open the page below and change the password directly according to the prompts.
Graphic tutorial: http://nic.bwu.edu.cn/info/9396/58623.htm
2. VPN system tutorial
1). On a computer
Use a browser to open https://vpn.bwu.edu.cn and enter your account and password. After successful login, you can use the campus network resources.
Graphic tutorial: http://nic.bwu.edu.cn/info/9396/58508.htm
2). On Android phone
Use a browser to open https://vpn.bwu.edu.cn, download the “Android client”, click the EasyConnect icon on the desktop after installation, fill in “vpn.bwu.edu.cn” in the server column, and then enter your account and password. After logging in successfully, you can use the campus network resources.
Graphic tutorial: http://nic.bwu.edu.cn/info/9396/58512.htm
3). On iPhone
Search for “EasyConnect” in the Appstore and install it, click the EasyConnect icon on the desktop, fill in “vpn.bwu.edu.cn” in the server column, and then enter your account and password to log in. If it prompts “EasyConnect” Would Like to Add VPN Configurations, click “Allow” button, you can use the campus network resources after logging in successfully.
Graphic tutorial: http://nic.bwu.edu.cn/info/9396/58513.htm
4). How to use campus VPN on iPhone
Open the Appstore, search for easyconnect and install it, as shown below
After installation, this new APP icon is added to the desktop
After running the software, enter vpn.bwu.edu.cn on the home page
Then enter your Internet account and password.
If the following prompt appears, click “Allow”.
The appearance of the following interface indicates that you have successfully connected to the campus VPN service.
To access library digital resources, click Library Resources (Mobile Version) on the image above.
Click on “School Library Digital Resources”.
The mobile browser will be used to open the resource list of the library website, then you can click the corresponding database name to access the digital resources.
5)How to use VPN on Android phone
Use your mobile browser to open vpn.bwu.edu.cn and click on the Android client software.
Click on the mobile client on the new page.
Download EasyConnectPhone.apk
The following icon appears on the desktop after installation.
After running the software, enter vpn.bwu.edu.cn on the home page.
Enter your Internet account and password.
After running the software, enter vpn.bwu.edu.cn on the home page.
Enter your Internet account and password.
After successful login, the following interface will appear which indicates that you have been successfully connected to VPN service.
To access library resources, click Library Resources (mobile version) on the image above.
The mobile browser will be used to open the resource list of the library website, then you can click the corresponding database name to access the digital resources.
6) How to use VPN on computer
A. Enter vpn.bwu.edu.cn in the browser and press Enter to open the login page of the VPN system. If it prompts “Not a private connection” or “Certificate is at risk”, click the “Ignore warning and continue access” option.
B. Enter your Internet account and password on the login page, and click Login.
C. After logging in, you are connected to the VPN system, and you can open a separate webpage to access various resources on the campus network.
